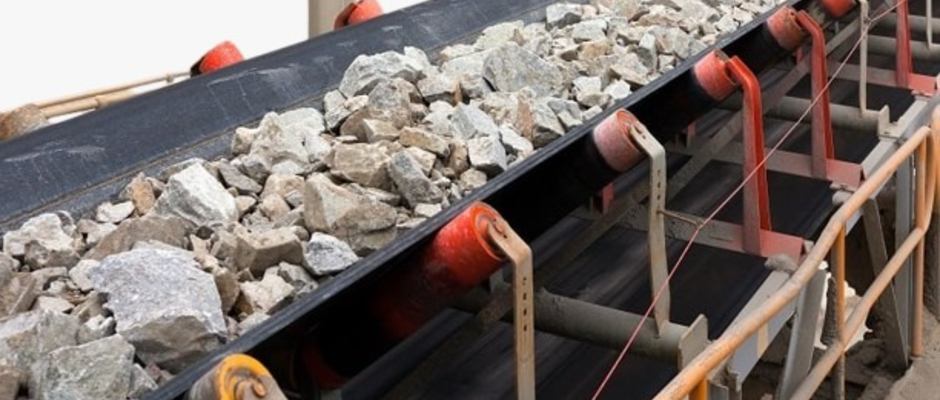

Belt Conveyor

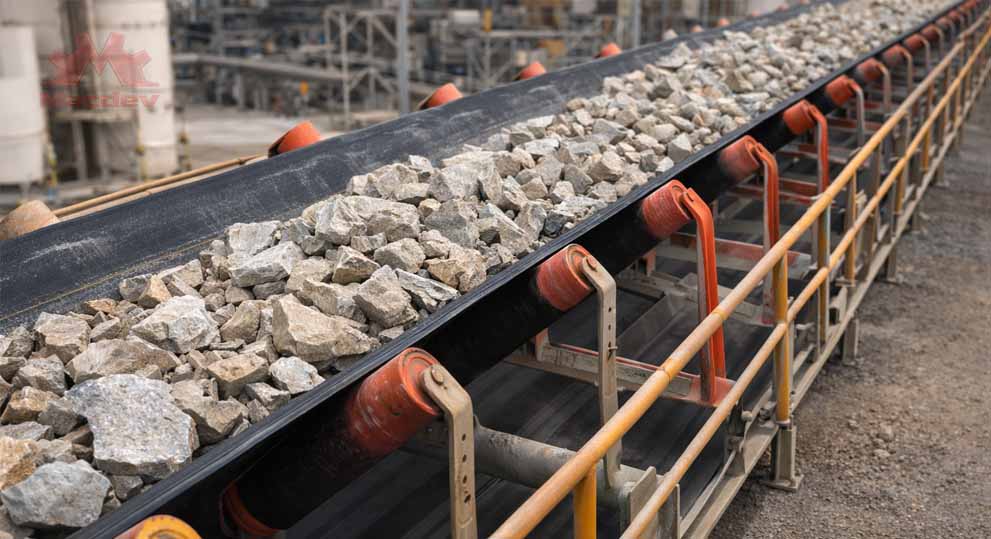

Conveyor Belt Weigher Scales for Continuous, In-Motion Material Measurement

MacDev’s Conveyor Belt Weigher Scale Systems (MDBS Series) are high-precision, in-motion weighing solutions designed to measure the real-time flow rate and totalized weight of bulk materials traveling on conveyor belts of any length.

Engineered for rugged industrial environments, these belt weighers deliver stable, repeatable, and reliable performance without interrupting material flow, making them an economical and dependable solution for modern bulk material handling operations.

Why Choose MacDev Conveyor Belt Weighers?

Unlike static weighing systems, MacDev Conveyor Belt Weighers measure material directly on the moving conveyor. The system can be retrofitted on existing conveyors without structural modification, allowing accurate throughput monitoring with minimal downtime.

• True in-motion weighing without stopping the conveyor
• Retrofit installation on existing conveyor systems
• Accurate flow rate and totalized weight measurement
• Stable measurement using preceding and succeeding idlers
• Low maintenance, heavy-duty industrial design

Working Principle

The Conveyor Belt Weigher continuously measures the material load using high-precision strain gauge load cells mounted beneath the weighing idlers. Belt speed is monitored through a tachometer or speed sensor generating pulses across a wide operating range.

The weighing controller processes load and speed signals to calculate instantaneous flow rate and cumulative tonnage. Advanced signal conditioning compensates for belt variations and environmental influences, ensuring consistent and dependable results.

Applications

MacDev Conveyor Belt Weigher Scales are widely used in industries where continuous material flow measurement is essential for process control, inventory management, and production reporting.

• Coal handling systems and power plants
• Cement plants, clinker, and raw material conveying
• Mining, quarrying, and mineral processing
• Ports, harbors, and bulk material terminals
• Steel plants and metallurgical industries
• Chemical and fertilizer manufacturing units

Key Features

• Typical weighing accuracy of ±0.5% to ±1% of full scale
• Heavy-duty, robust scale structure for continuous operation
• Use of preceding and succeeding idlers for stable measurement
• Auto belt length diagnostics with auto-zero tracking
• High-precision load cell mounting arrangement
• Speed measurement via tachometer for low to high belt speeds
• Microprocessor-based weighing integrator
• 100% customization available as per client conveyor design

Industries We Serve

MacDev Conveyor Belt Weighers are trusted across industries where accurate throughput data directly impacts operational efficiency and cost control.

• Power & Thermal Plants
• Cement & Building Materials
• Mining & Bulk Material Handling
• Ports, Logistics & Storage Facilities
• Chemical & Process Industries

“Measure material in motion. Control throughput. Optimize performance.”
– MacDev Engineering Solutions

Complete Conveyor Belt Weigher Solutions

MacDev offers complete end-to-end Conveyor Belt Weigher solutions, including system engineering, manufacturing, installation, calibration, commissioning, and annual maintenance services.

Each system is custom-engineered to suit conveyor width, belt speed, material characteristics, and plant conditions—delivering long-term accuracy, reliability, and operational confidence.
